Lithium Ribbon
牌号 Category |
规格 Specification |
厚度及公差 Thickness and tolerances |
宽度及公差 Width and tolerances |
|||
厚度(mm) Thickness |
宽度(mm) Width |
厚度(mm) Thickness |
公差(mm) Tolerance |
宽度(mm) Width |
公差(mm) Tolerance |
|
Li-2 Li-3 Li-4 |
0.1~4.0 | 4.0~120 | 0.10~0.20 | ±0.01 | 4.0~40 | ±0.2 |
>0.20~0.60 | ±0.02 | >40~100 | ±0.3 | |||
>0.60~0.80 | ±0.03 | |||||
>0.80~1.00 | ±0.04 | >100~120 | ±0.4 | |||
>1.00~4.00 | ±0.05 | |||||
备注:产品尺寸规格可根据用户要求定制更改。 Remark: The dimension of products can be customized according to customers' requirements. |
牌号Category | Li, (≥wt.%) | 杂质含量Impurity content (wt.%) | |||||||||||
K | Na | Ca | Fe | Si | Al | Ni | Cu | Mg | Cl- | N | Pb | ||
Li-2 | 99.95 | 0.001 | 0.010 | 0.010 | 0.002 | 0.004 | 0.005 | 0.003 | 0.001 | 0.005 | 0.005 | 0.010 | 0.0010 |
Li-3 | 99.90 | 0.005 | 0.020 | 0.020 | 0.005 | 0.008 | 0.005 | 0.003 | 0.004 | 0.010 | 0.006 | 0.020 | 0.0030 |
Li-4 | 99.00 | - | 0.200 | 0.040 | 0.010 | 0.040 | 0.020 | - | 0.010 | - | - | - | 0.0050 |
备注:1、锂含量(质量分数)为100%减去表中杂质实测总和后的余量。 2、需方如对锂带的化学成分有特殊要求时,由供需双方商定。 Remarks: 1、 The lithium content (mass fraction) is 100 % minus the total amount of impurities measured in the table. 2、 Special requirements for the chemical composition of lithium ribbon should be agreed by seller and buyer. |
内包装:将锂带卷绕在塑料卷取盘上,在干燥环境中充高纯氩气密封包装于已干燥24h 以上的五层铝塑复合袋中。铝塑复合袋外套缓冲减震泡泡袋,分层摆好。外包装:钢桶密封。

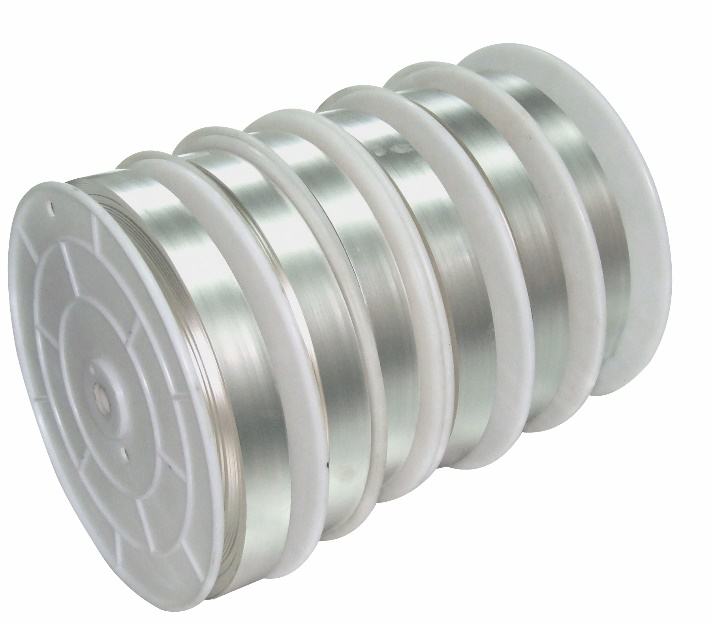

Inner packing: The lithium ribbon is wound around the plastic coiling and sealed in five-layers aluminum-plastic composite bag that has been dried for more than 24h with high-purity argon in the dry environment. The aluminum composite bag is covered with cushioned foam, and is placed in layers. Outer packing: Seal with steel drum.
锂带应密闭隔绝空气保存,注意防潮、防水,远离热源、火源及氧化性物质;保存期为六个月。
Lithium ribbon should be sealed off from air, moisture, water, heat sources, source of ignition and oxidizing substances; The shelf life of lithium ribbon is six months.
